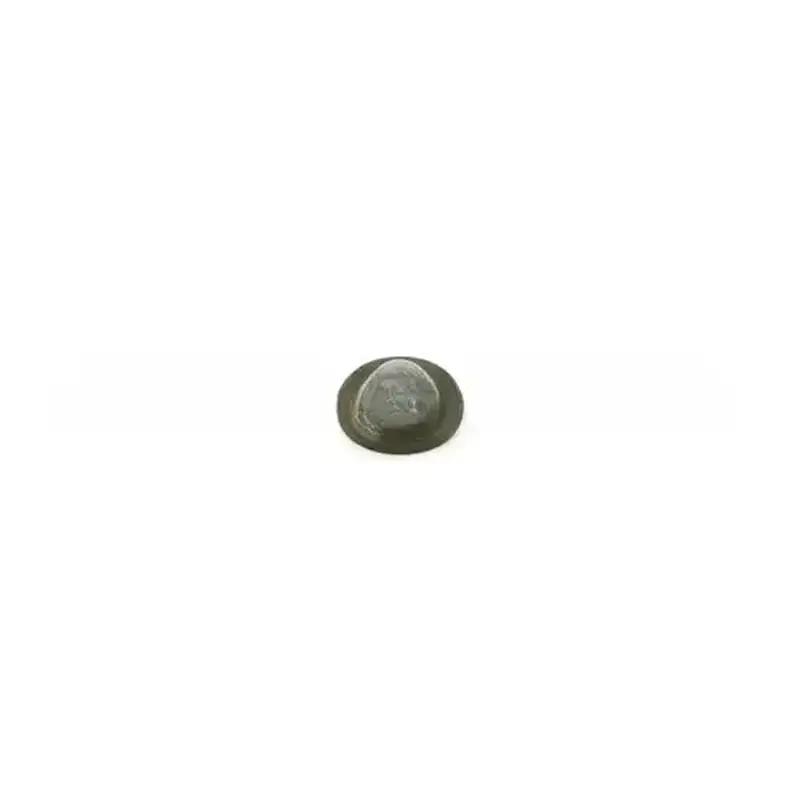

Trimco 1275RP613 Small Convex Rubber Only Wall Bumper Oil Rubbed Bronze Finish

• Wrought or Cast Construction with Special High Abuse and Tamper Resistant Options for Schools and Prisons
• Heavy Steel Washer Cast into the Rubber to Resist Tampering or Unauthorized Removal
• Available in Either Cast or Wrought and in Most Architectural Finishes
• Provided with a Combination Fasteners Pack for a Variety of Installation Conditions
• Large, Small, and Designer fOCAL Options Available

Finish

Oil Rubbed Dark Bronze

Design

Convex

Series

1275 Series

Finish Description

Oil Rubbed Dark Bronze

Product Type

Door Accessory

For Use With

All Styles of Locksets and Handles

Application

Commercial and Industrial Buildings; K-12 Schools; Office Buildings; Retail and Strip Malls; Universities and Higher Education

Warranty

Lifetime

Color Code

613/US10B

Function

Door Stop

Base Size

1″ Dia

Tip Material

Rubber

Product Height

9/16 Inch

ADA Compliant

No

Finish Family

Dark Bronze

Included Components

Wood Screw With Rawl Plug and Plastic Toggler; Machine Screw and Metal Toggle Bolt; Machine Screw and Anchor

Product Diameter

1 Inch

Standards

BHMA L02101

Bumper Style

Convex

Function Family

Door Accessory

Product Projection

9/16 Inch

Features

Special High-Abuse and Tamper Resistant; Heavy Steel Washer Cast Into the Rubber to Resist Tampering or Unauthorized Removal

Manufacturer Parent

Trimco Hardware

Sub-Series

DTA_Door_Stops_Holders_trimco_23

Diameter

1″

Dimension

1″ Diameter; 9/16″ Projection

Product Overview 1270 SeriesWall Bumpers

Trimcos 1270 Series Wall Bumpers are an attractive, metal-encased, rubber stop for use with all Applications:

• Schools

• Offices

• Prisons

• Commercial & Industrial Buildings

• Hospitality

Features:

• Anti-vandal heavy duty washer cast into rubber

• Our most versatile wall bumper

• Prison and school versions for highly abusive applications

Specifications: Standards:

• BHMA L02101/L02251

Material Options:

• BR Brass
• BZ Bronze
• SS Stainless Steel

Fasteners:

• Combo Pack supplied includes Wood Screw with Rawl Plug & Plastic Toggler, Machine Screw and Metal Toggle Bolt, Machine Screw & Anchor.

Warranty:

• Lifetime Warranty

Notes:

• Patent #6,295,697

Functions: 1270CV:

• Cast concave wall bumper

1270WV:

• Wrought concave wall bumper

1270CX:

• Cast convex wall bumper

1270WX:

• Wrought convex wall bumper

1270CVPV:

• Cast concave prison wall bumper
• (torx screw, expansion shield & anti-rotation pin)

1270CVSV:

• Cast concave school wall bumper
• (surface mounted)

1270CXPV:

• Cast convex prison wall bumper
• (torx screw, expansion shield & anti-rotation pin)

1270CXSV:

• Cast convex school wall bumper
• (surface mounted)

1275RP:

• Wall Bumper, Small, Convex

1278CX:

• Wall Bumper, Dcor, Cast, Convex

Finishes:

• 605 – Polished Brass
• 606 – Satin Brass
• 613 – Oil Rubbed Bronze
• 625 – Polished Chrome
• 626 – Satin Chrome
• 629 – Polished Stainless Steel (wrought only)
• 630 – Satin Stainless Steel (wrought only)
